Biometric Mapping II

This is Part 2 of a series on my Biometric Mapping project. See the first post for an introduction.

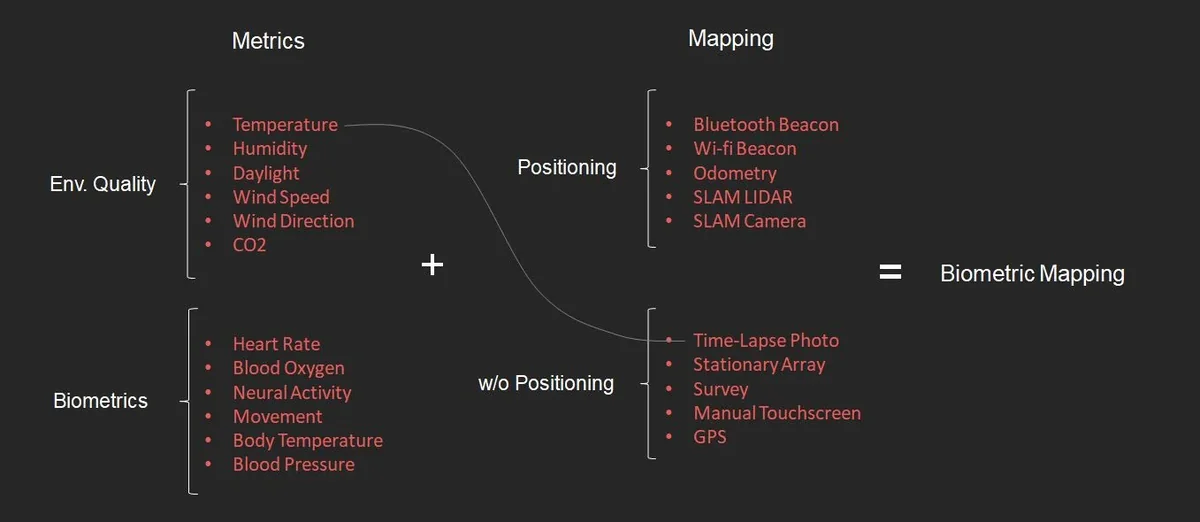

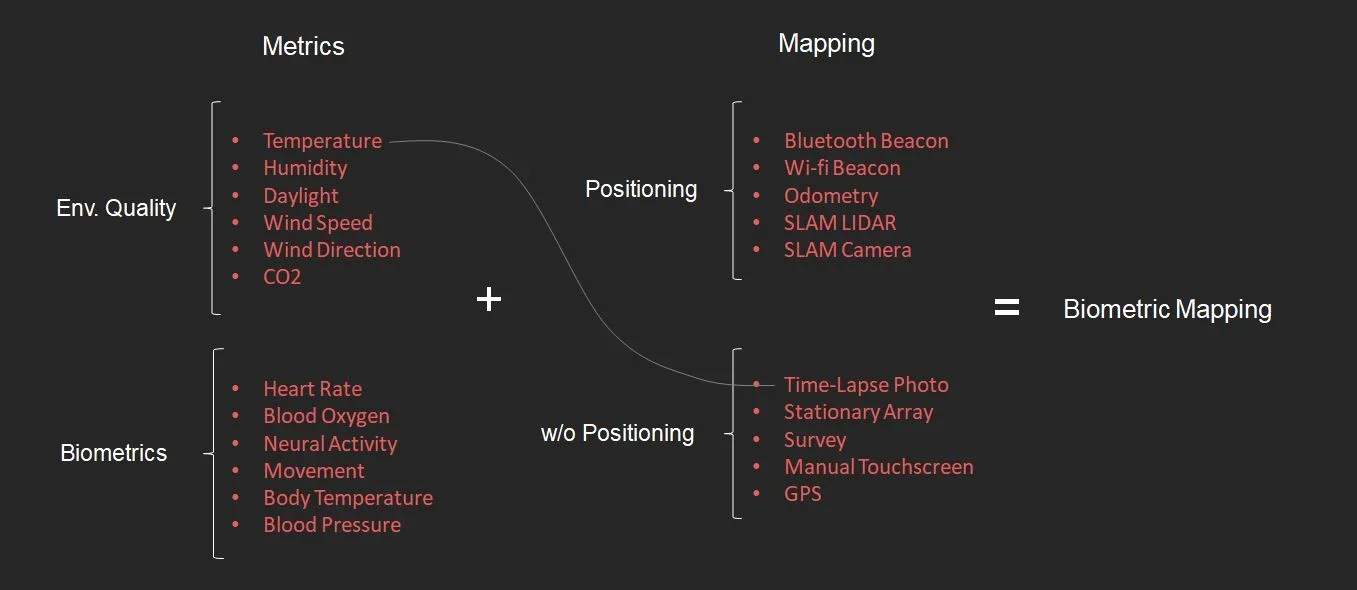

Diagram showing how environmental metrics and biometrics combine with positioning systems to create biometric mapping.(open larger)

Biometric Mapping is about selecting one or more metrics, such as temperature, light, heart rate, or neural activity, and mapping it with some kind of positioning system. These can be mixed and matched to produce devices for mapping the unseen characteristics of different spaces. So far, I've adopted Arduino as the platform for collecting these metrics. Arduinos are single-board micro controllers that can host sensors and run software to record the data they collect.

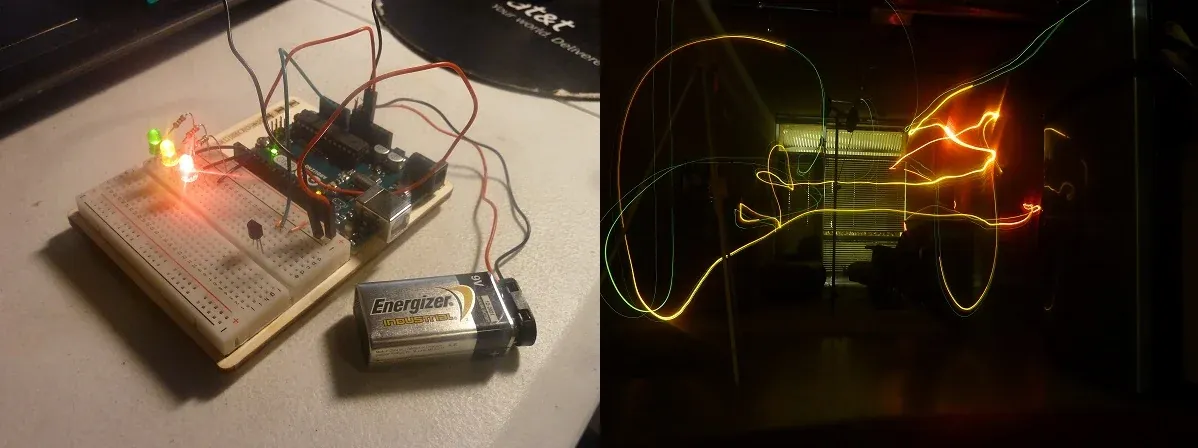

Arduino setup with temperature sensor and LEDs on breadboard, powering light trails in long-exposure photo.(open larger)

For the first experiment in mapping, I paired temperature as my metric with time-lapse photography as my positioning device. I have an Arduino board with a temperature sensor that illuminates one to three LEDs based on the air temperature in that location. By attaching a 9v battery as a mobile power source, I can then set up a long exposure photo and carry the Arduino around the room for 30 seconds. The warmest places in the room activate the red LED, and the coolest places in the room activate the green. Success! Now on to a more ambitious pairing.

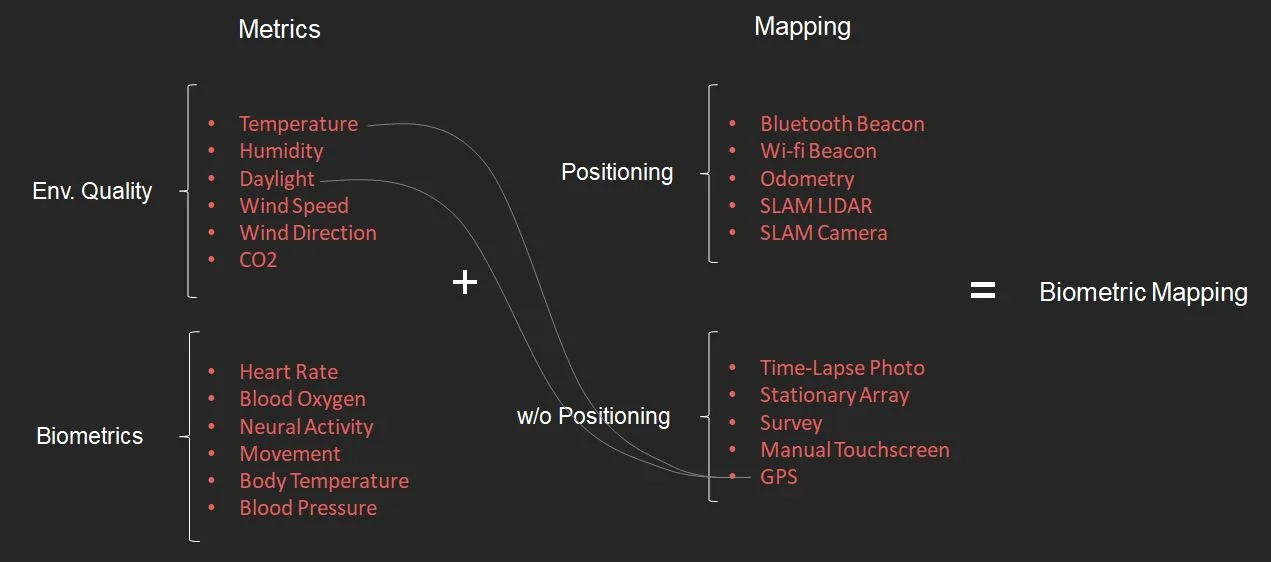

Diagram comparing environmental and biometric data with positioning methods to form biometric mapping.(open larger)

Next, I want to measure temperature and daylight with GPS as my positioning system. Unlike the LED long exposure photography, I will actually have to record the data I collect and sync it to a time stamp and GPS coordinates.

Diagram showing Arduino-based data logging system for temperature, light, and time with SD card storage.(open larger)

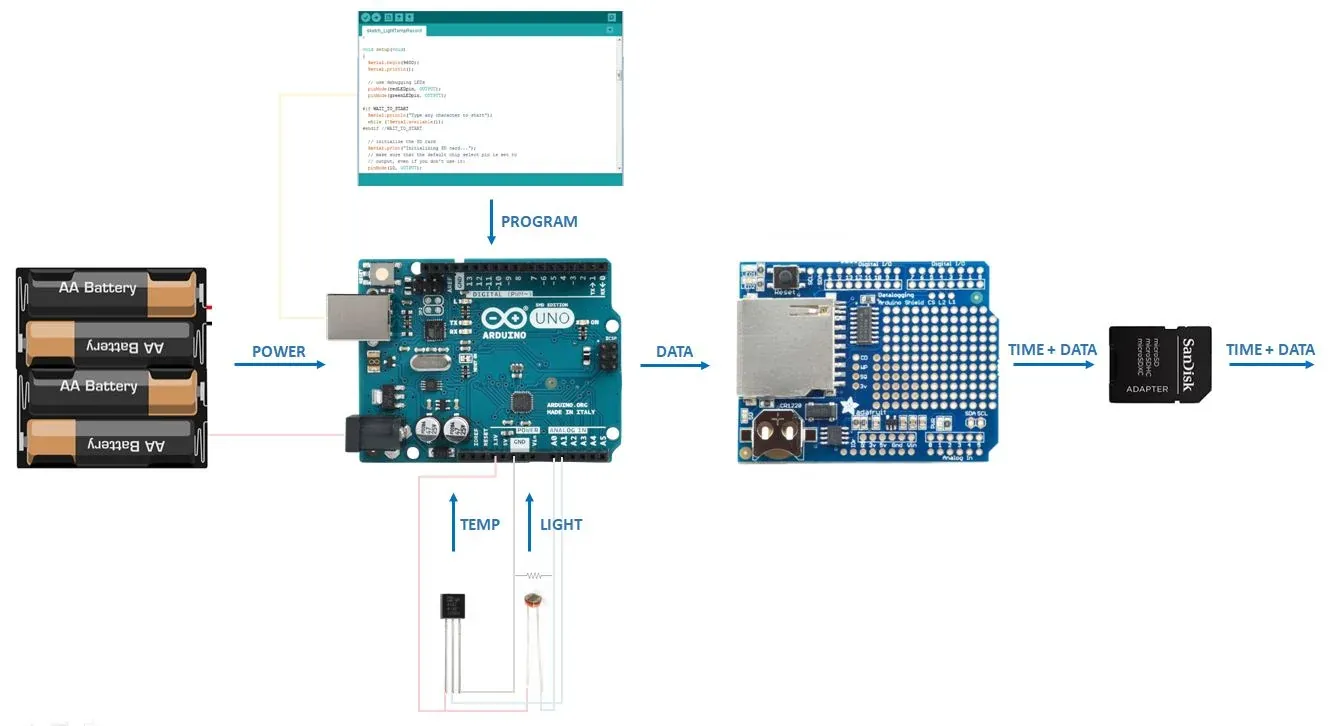

This is how the Arduino is set up. I have a battery pack for mobile power (6 AA batteries are more efficient than a 9v), a TMP36 temperature sensor, and a photocell for detecting light. I need a real-time clock for recording the time, and I need a way to store all of this data. I'm using an Adafruit data logger shield to keep time and record it to an SD card.

Arduino with data logger shield and breadboard setup for real-time environmental sensing and logging.(open larger)

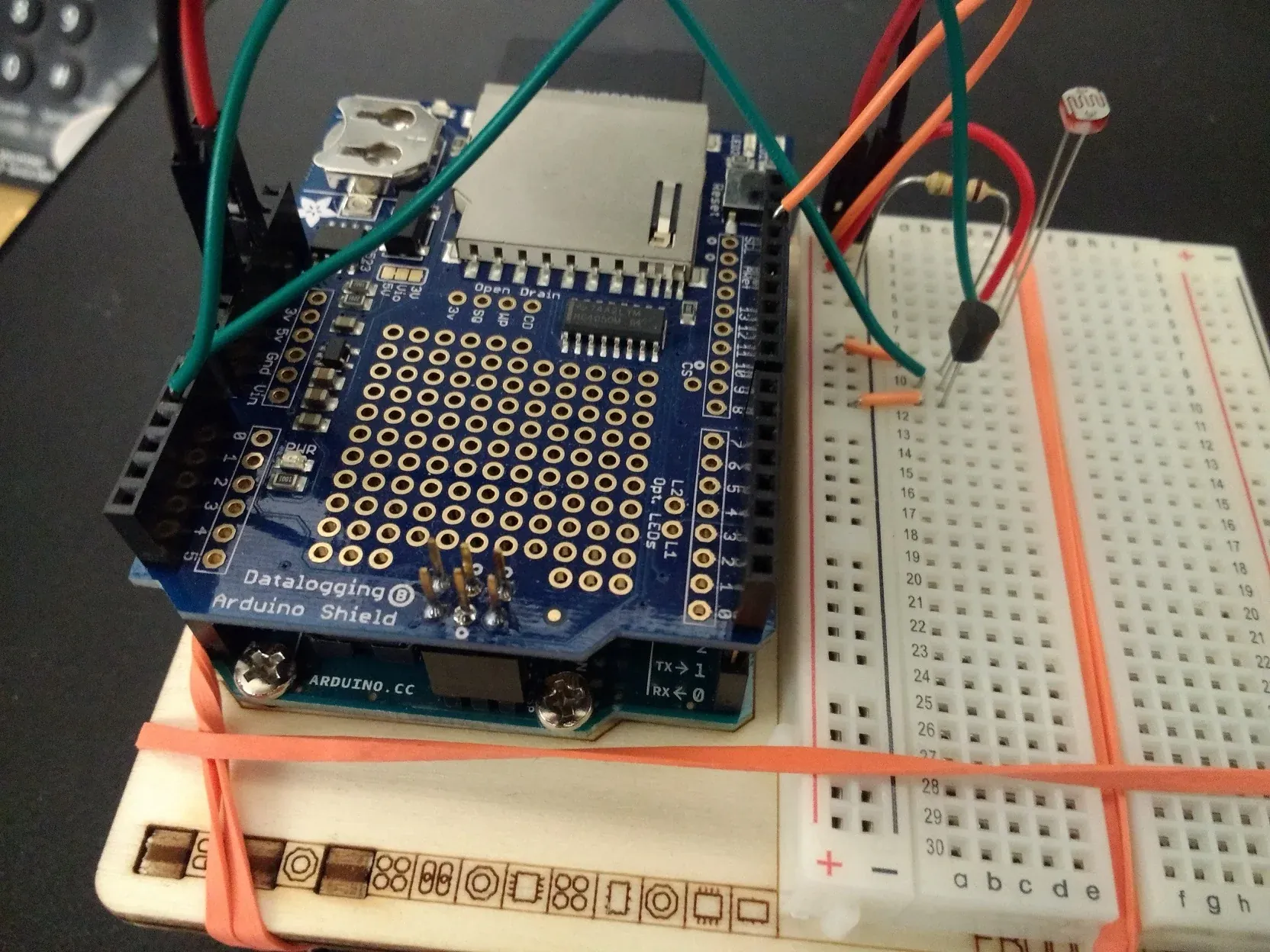

The data logger shield requires some header pins to be soldered onto it so it can be inserted on top of the Arduino. I edited some example Arduino programs so that it would record light, temperature, and a time stamp once a second, and uploaded the program to the Arduino. Once the code is uploaded, it stays on the Arduino and immediately begins working when the battery pack is plugged in. There are GPS shields for Arduino that would allow me to record location as well, but for now, I'm using a GPS app on my phone with a time stamp, and running the two simultaneously. Now it's ready for data collection!

Arduino-based biometric mapper mounted on bike handlebars with paper shield covering electronics.(open larger)

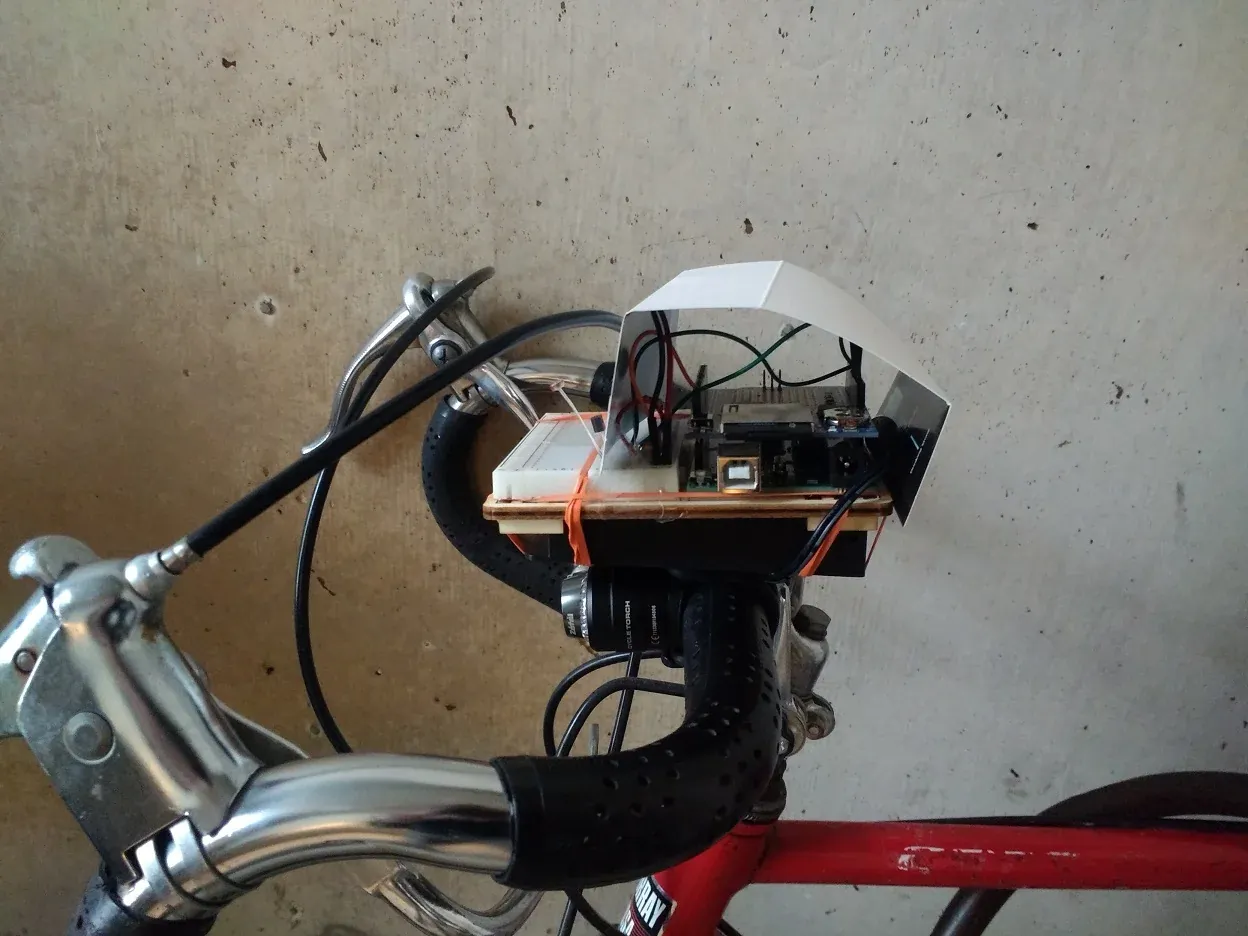

The setup is a little conspicuous, so I found it to be more discrete and efficient to set it up on the front of my car or bike, with a paper shield to hide all the fun bits, leaving only the temperature and light sensors exposed. Then I go for a joyride through whatever space I want to map.

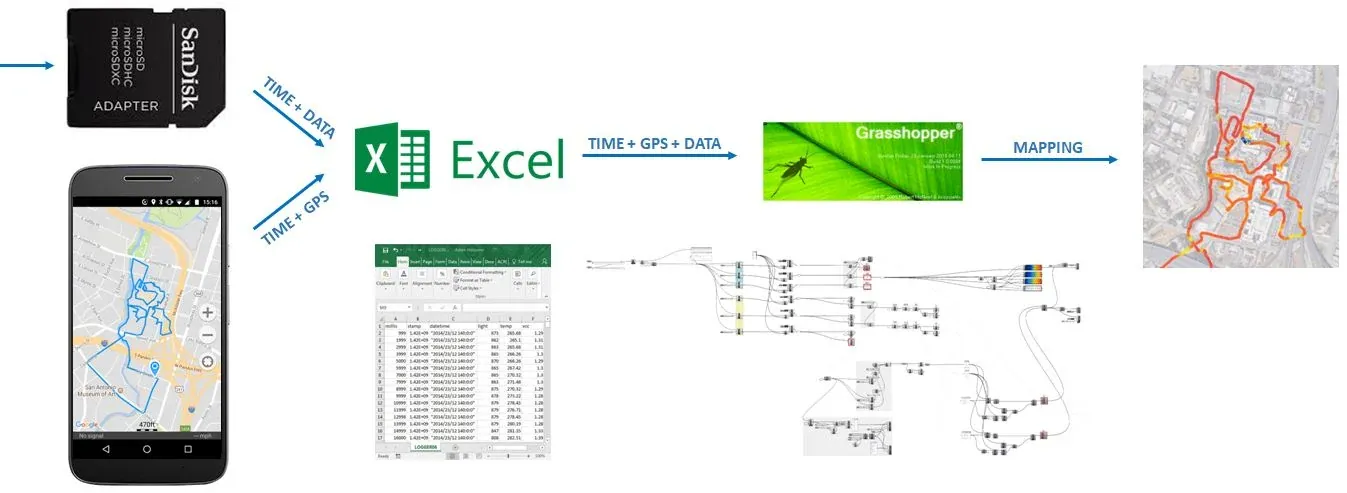

Workflow diagram showing data from phone and SD card processed in Excel and Grasshopper to create a mapped biometric trail.(open larger)

Now for the second half of the workflow. This part came a lot more naturally to me, because I spend much more of my time with Excel and Grasshopper than I do with Arduino. I upload the GPS path from my phone to the computer, and upload the data from the SD card. Both of these come in the form of a .CSV, which I combine into one file.

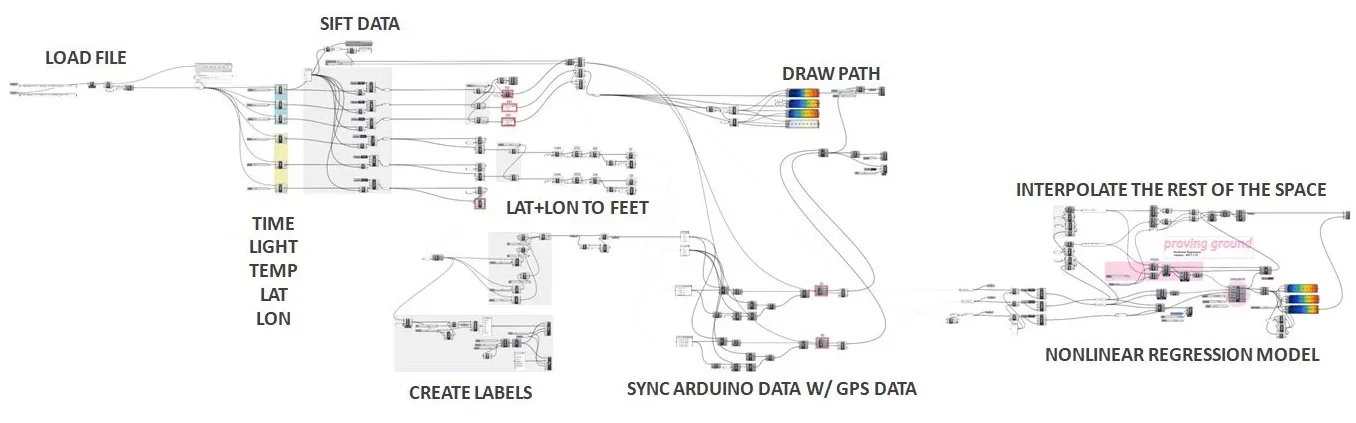

Grasshopper workflow diagram showing how GPS and sensor data are processed to interpolate biometric space.(open larger)

I read the .CSV file through Grasshopper, and break out each data point: Time, Light, Temperature, Latitude, and Longitude. This particular joyride was 30 minutes, or about 1,800 seconds, which means 1,800 data points. If this becomes too dense for some operations down the line, I add a sift pattern to only take every other data point, or every third data point, and so on. I'm also choosing the domain of each, because my phone GPS and Arduino don't start at exactly the same time, and I'll need to calibrate it slightly to sync. I'm converting degrees latitude and longitude to feet, because working with true degrees is awful in Rhino. A big issue I had with this setup is that the GPS app on my phone didn't always record a data point every second. It was more like two out of every three second. So I had to interpolate that data and re-plot it to get a single data point every second. Finally, I'm plotting the location with a value to get paths like this:

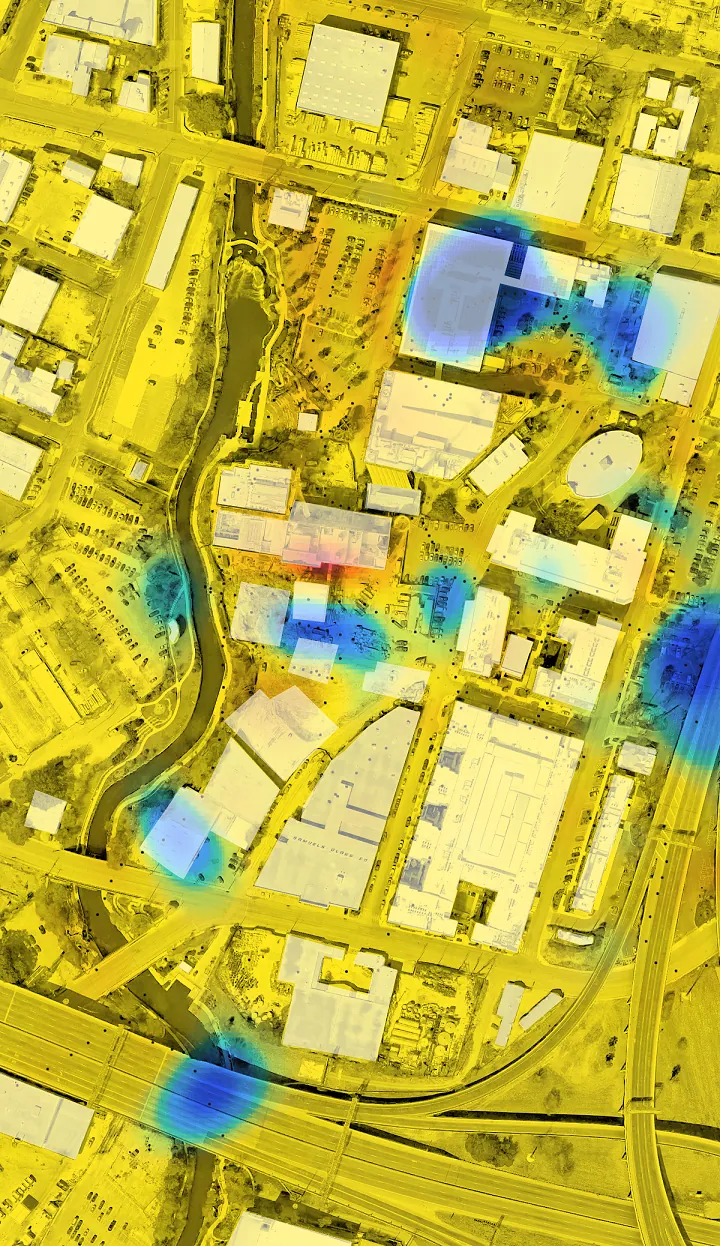

Heat map overlay on a city map showing light intensity patterns in the Pearl District, San Antonio.(open larger)

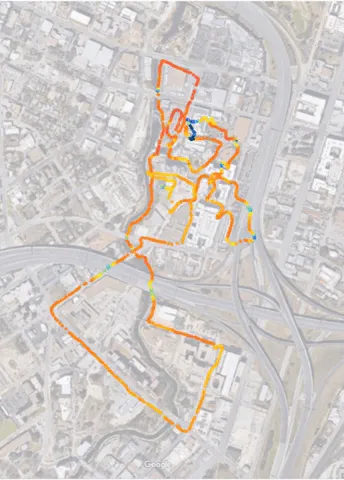

Light in the Pearl District, San Antonio
Color-coded temperature trail mapped over Pearl District, San Antonio, showing biometric data interpolation.(open larger)

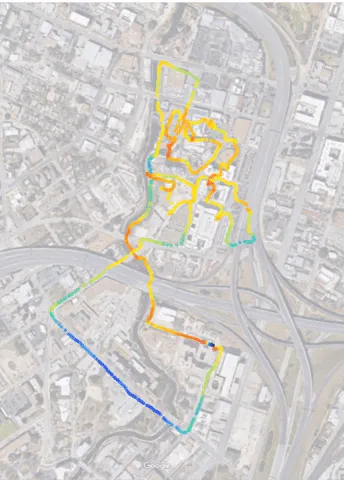

Temperature in the Pearl District, San Antonio

Once I have all of this mapped, I'm using Proving Ground's Non-Linear Regression component, a fun new tool from LunchBoxML. Nonlinear regression takes several three-dimensional points (X=longitude, Y=latitude, Z=light or temperature) and interpolates the rest of the surface.

Heat map overlay on a city map showing interpolated temperature zones from biometric data points.(open larger)

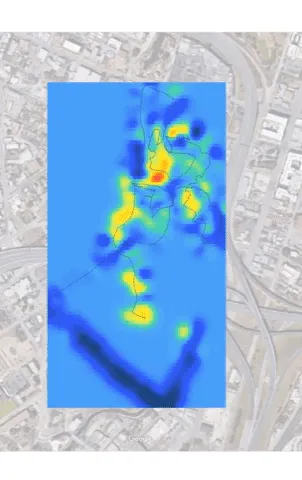

Nonlinear regression to interpolate the temperature of the rest of the space, as the domain expands.

Nonlinear regression worked very well for this, it just just takes some fiddling with the sigma value to get meaningful results. A low sigma value (left) is very local and does not smooth itself out or interpolate very far from a real data point. A high value (right) smooths things out a little too much for this scale.

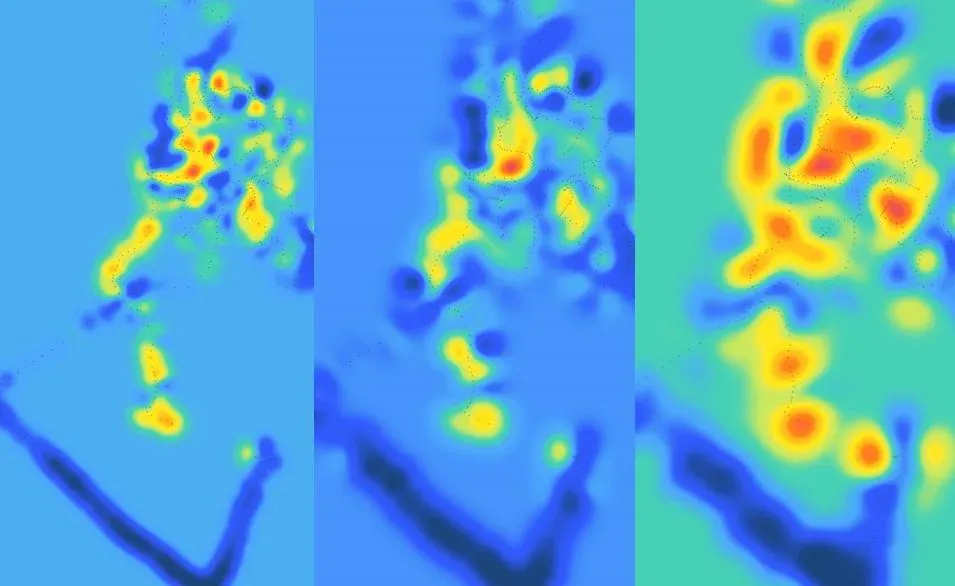

Three heat maps showing biometric data interpolation with varying sigma values for nonlinear regression.(open larger)

By overlaying the light and temperature maps onto a plan, I get a somewhat accurate map.

Heat map of temperature and light intensity overlaid on Pearl District, San Antonio, showing biometric data interpolation.(open larger)

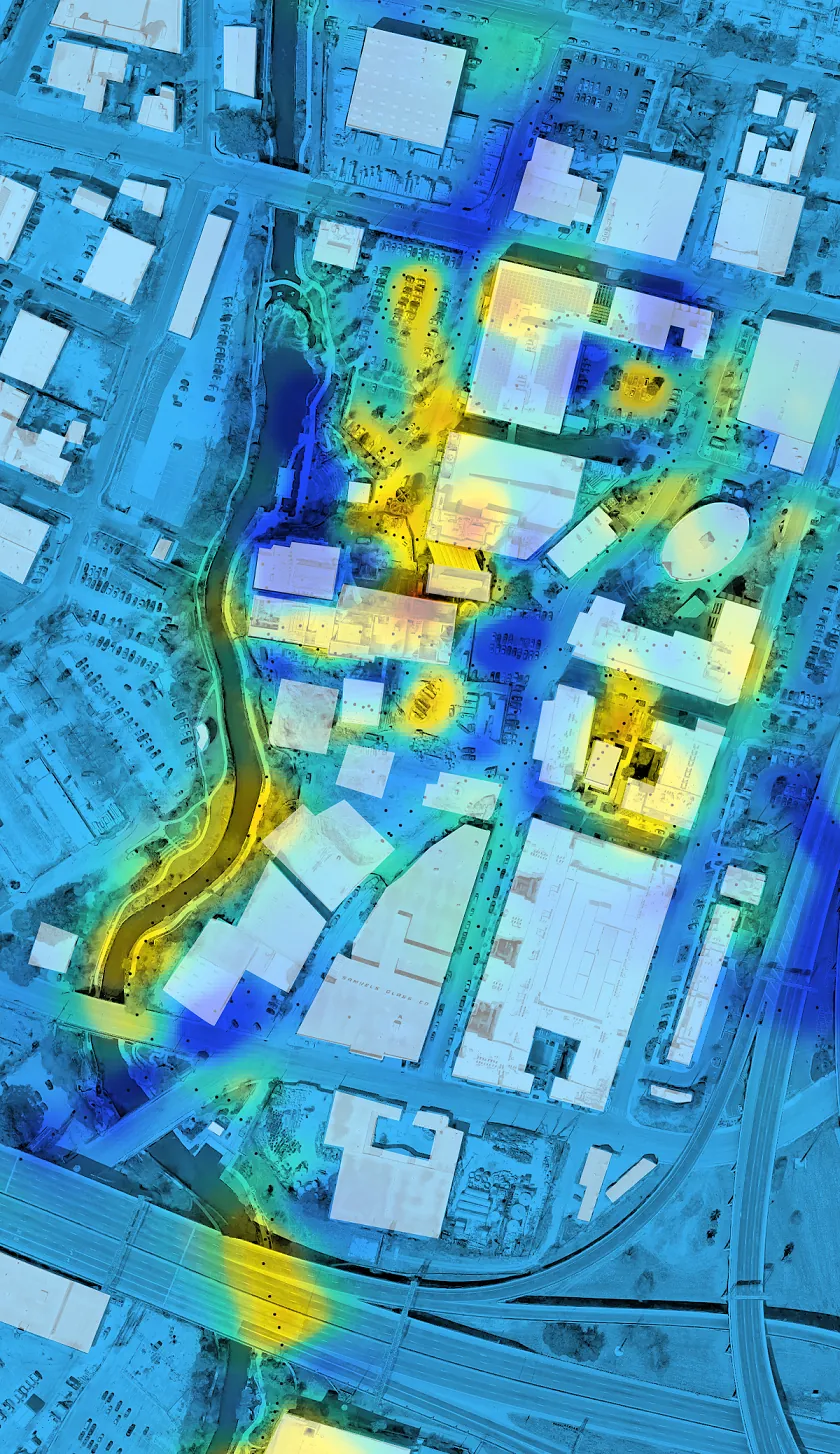

Temperature at the Pearl
Color-coded light and temperature overlay on Pearl District, San Antonio, visualizing biometric data interpolation.(open larger)
Daylight at the Pearl

I consider this a good proof of concept, and now I'll have to think carefully about what tests would be most meaningful to do next. These maps don't yet tell me anything surprising: It appears to be darker under bridges and behind tall buildings. This is about the scalar limit of GPS. Being in or near a building seems to interfere with its accuracy, so if I want to actually map interior spaces with more precision, I will need to explore other positioning options besides GPS.

The more passes I take in a location, the more accurate the results will be. This is not a bad amount of data for a half hour bike ride in a space this big, but it would be interesting to get more accurate and nuanced results in a smaller space.

Next steps are too think about what other metrics to measure (perhaps incorporate some biometrics?) and to consider alternative positioning systems.
